Quick Details

  • Place of Origin: Chongqing, China (Mainland)
  • Brand Name: Haichen
  • Model Number: R S B
  • Usage: Industrial
  • Theory: Temperature Sensor
  • Accuracy: Class I,II, ±1.5℃
  • Temperature range: 0~1600℃
  • Diameter: 0.2~0.8mm
  • Color: silver
  • Insulation: MgO
  • specification: pt-rh

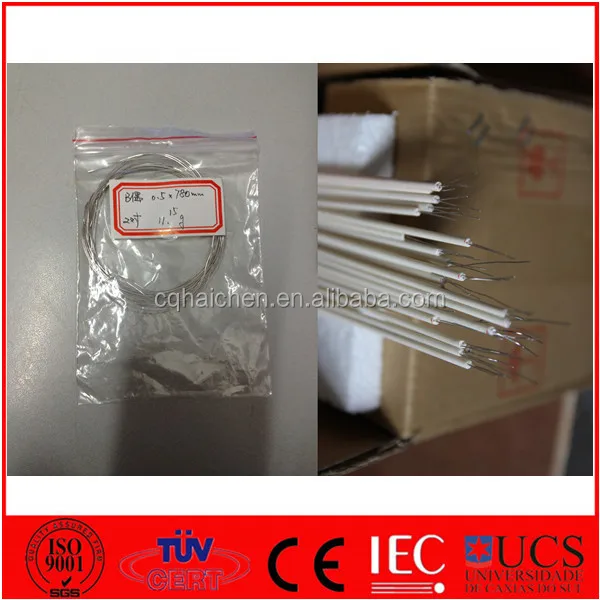

  • thermo wire: 0.3mm 0.5mm
  • Thread: M16 to M33
  • Tube dia: 8mm to 25mm

Packaging & Delivery

Packaging Details standard export cartion case
Delivery Time 5~20 days

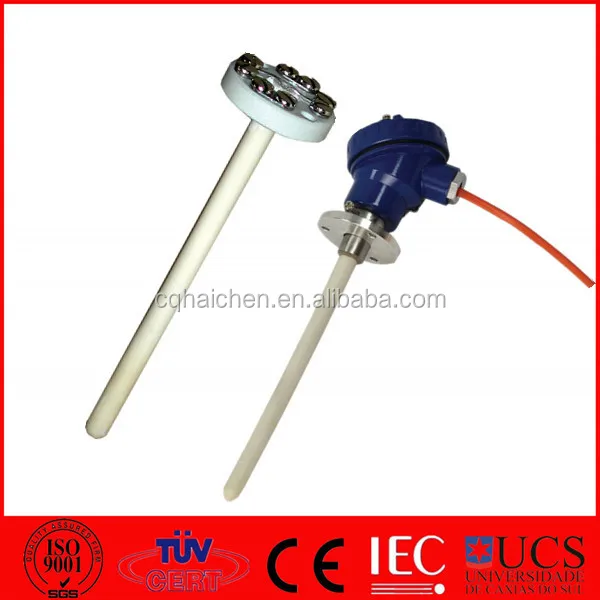

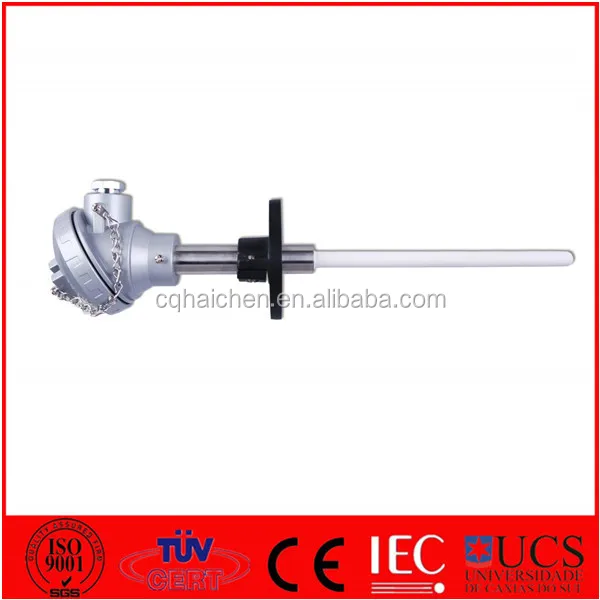

WRB type Platinum Rhodium thermocouple with corundum protection tube

Specification:

1.Diameter and length:Can be customized as customer's requirements(6mm--20mm)

2.Terminal box:water-proof type,splash-proof type,anti-explosion type,connector type,import type.

3Fixed device : flange/none/screw
4.Temperature Range: 0~1600℃
Different sensor of different type:    WRB type Platinum Rhodium thermocouple with corundum protection tube

Category

Code of
Graduation

Class of Tolerance

Class I

Class II

Temperature
Measurement Range

Tolerance
Value

Temperature
Measurement Range

Tolerance
Value

Ni Cr Si- Ni Si Mg

N

40~1000º C

± 1.5º C or ± 0.4%t

40~1200º C

± 2.5º C or ± 0.75%t

Ni Cr - Ni Si

K

Ni Cr - Cu Ni

E

40~800º C

± 1.5º C or ± 0.4%t

40~900º C

± 2.5º C or ± 0.75%t

Fe - Cu Ni

J

40~750º C

40~750º C

Cu - Cu Ni

T

40~350º C

± 1.5º C or ± 0.4%t

40~350º C

± 1º C or ± 0.75%t

Pt Rh13 - Pt

R

0~1000º C

± 1.5º C or ± 0.4%t

0~600º C

± 1.5º C

Pt Rh10 - Pt

S

1000~1600º C

± [1+0.003 or t - 1100)]º C

600~1600º C

0.25%t

Pt Rh30 - Pt Rh6

B

-

600~1700º C

± 0.5º C or ± 0.25%t
